What is the Free Body Diagram of an accelerator throttle pedal assembly?

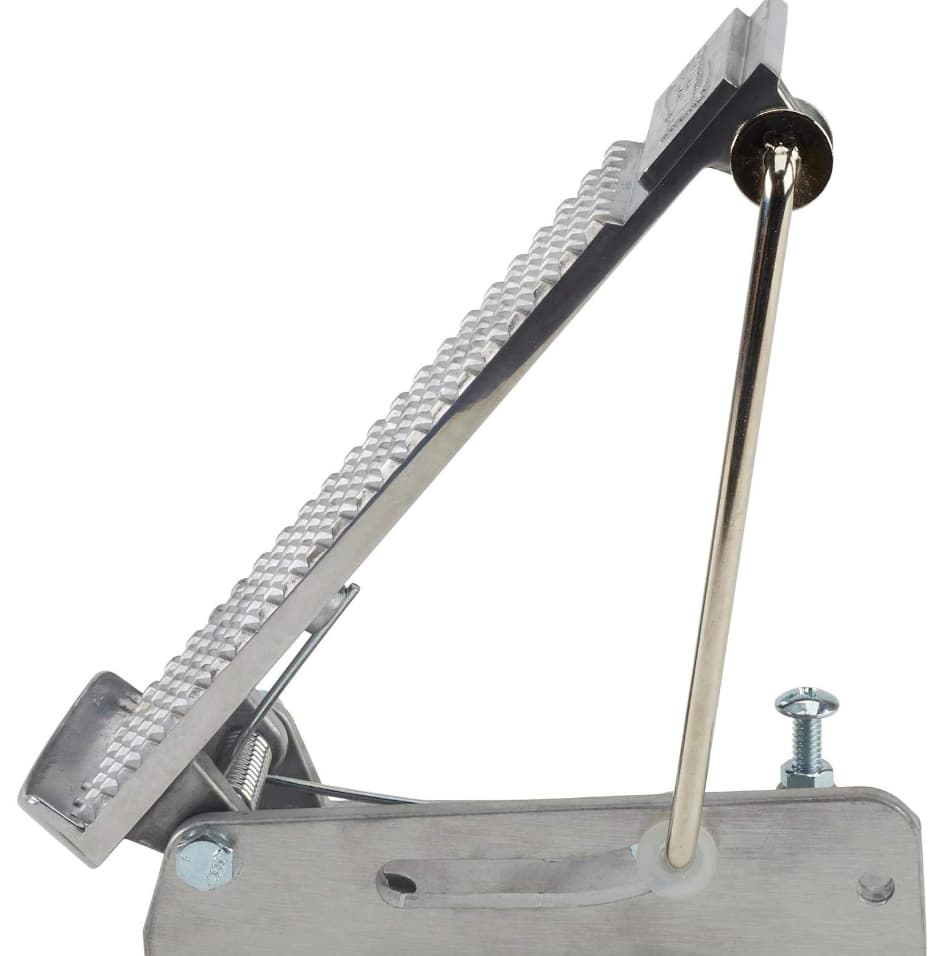

What is the FBD of the three components in the following assembly:

The three components being:

  1. Pedal
  2. Base
  3. Rod

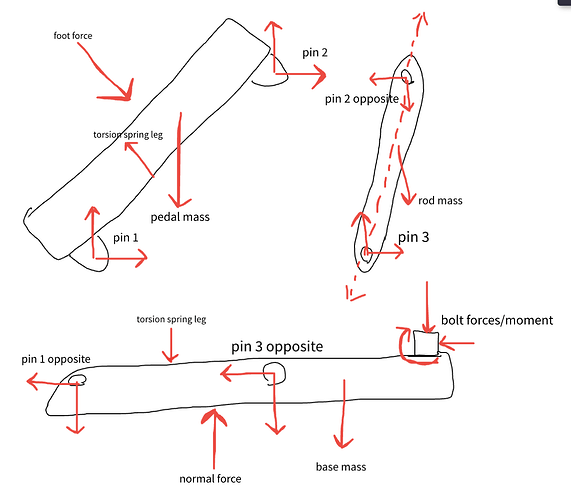

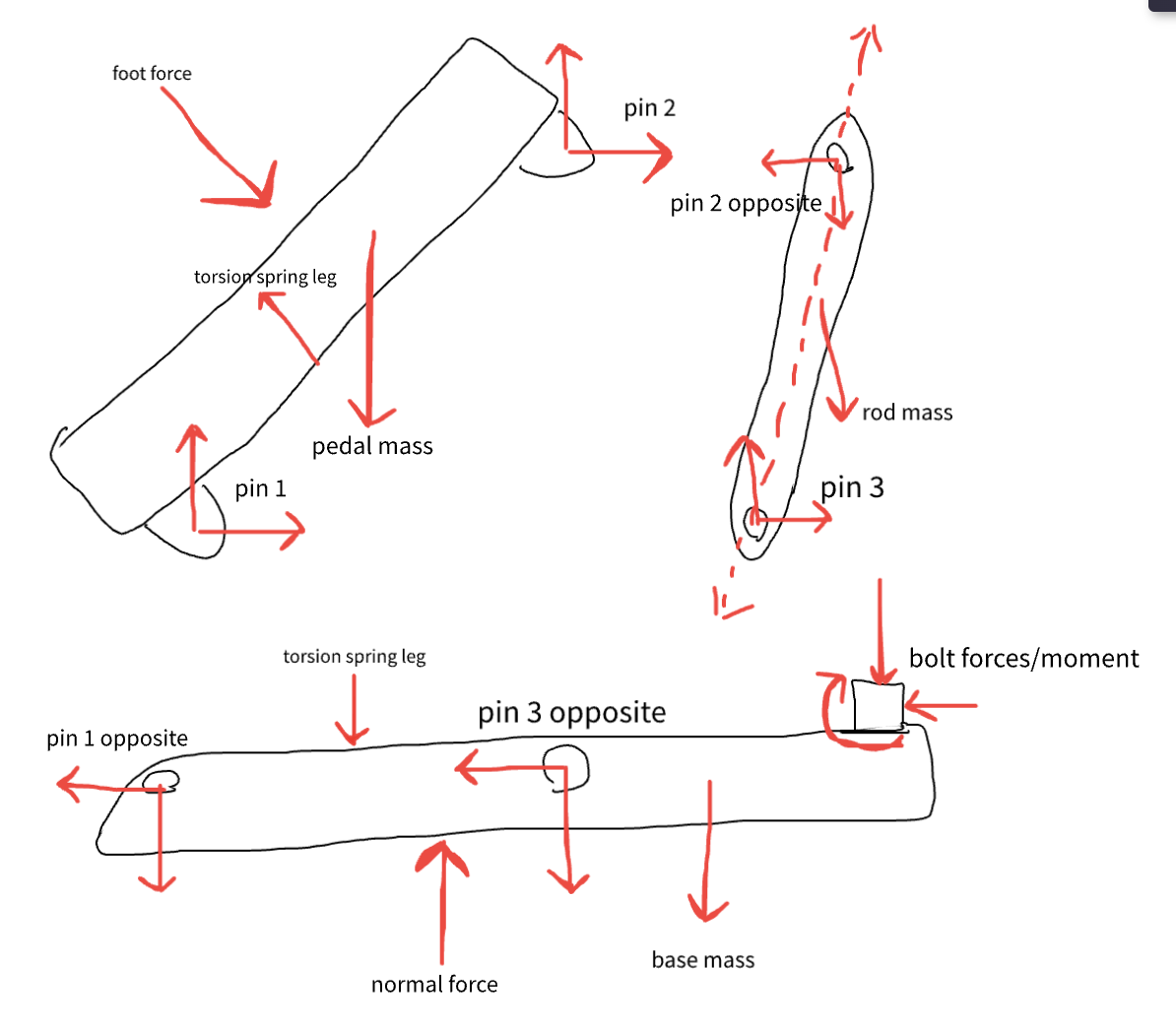

Key things to note:

  • The in-the-page running bolts were treated like pins (x and y component forces)
  • Bodies that share pins will have the same magnitude of force on each body but in opposite directions
  • The rod is a 2F member so the forces will run along the rod either in the tensile or compressive direction. The angle of the rod can be used to tell how the x and y component forces are related to each other
  • The bolt was assumed to have a moment acting on it as well similar to a fixed joint
